Pulse Jet Cartridge Filter
Pulse Jet Cartridge Filter

Techflow Enterprises Pvt Ltd is skillfully one of the dependable and significant suppliers of goods like pulse jet Dust Collector for Mixer, Bag House, Dust Recovery System, Air Pollution Control Device, De-Dusting System, Furnace Fume Extraction System, Cassette Type Filter, Online Cleaning Bag Filter, Electrostatic Precipitator, Bag Filter, ESP, Silo Vent Filter, Air Pollution Control Equipment, Centrifugal Fans & Blowers, Flue Gas E

We, Techflow Enterprises Pvt Ltd, have been supplying vital equipment to many industries, including foundry & steel, solid drying, glass, wood-working & laminates, cement, hot gases & fumes, mining & minerals, boilers flue gas, coal handling, air pollution control systems, and more.

Discover more
Pulse Jet Cartridge Filter

Applications

Dust Collector for Mixer Applications

The contaminated air rushes through the cartridges of the Pulse Jet Dust Collector for Mixer and traps the dust molecule, guaranteeing that only clean and contaminant-free air is left in the environment. The advantages of the Cartridge type Pulse Jet Dust Collector for Mixer include its small size and minimal space requirement. The main justification for the widespread adoption of these technologies in Mixer is this. Techflow offers a wide selection of Pulse Jet Dust Collectors for Mixers, with capacities ranging from 1000 to 100,000 cu metres per hour. These cartridge filters work with additional parts and alternatives such surface filtration technologies, discharge devices, and a range of textiles appropriate for different applications.

TECHNOFLOW builds and provides a remarkably effective pollution control solution. We can list a few of the numerous names for these systems that are well-known both domestically and internationally: ESP for a boiler, Baghouse, Pulse Jet Bag Filter, Dust Collector for Mixer, and Bag Filter for Boiler.

  • Based in Ahmedabad, Gujarat, Techflow is a respected manufacturer and distributor of equipment for managing air pollution, including Bag Filters. With its extensive global export, Techflow has become a trusted partner for many more industry categories thanks to its customer-centric approach and delivery of the best solution for controlling industrial air pollution. As a result, it is a preferred partner for meeting their needs for the highest quality bag filter.
  • Based on the demands of outlet emission, TECHFLOW creates and offers Pollution Control System and Pulse Jet Dust Collector for Mixer. Below is a description of the two primary types of pulse jet dust collectors for Mixer used by TECHFLOW.

Schematics

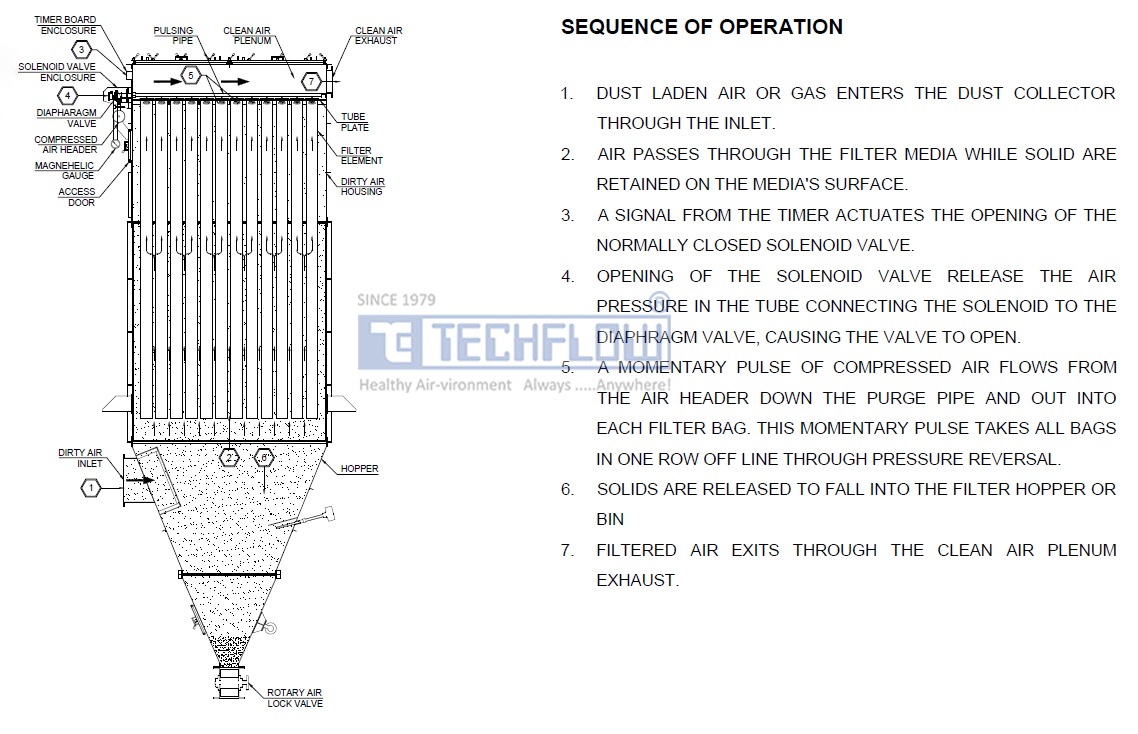

1. Online Cleaned Pulse Jet Dust Collector for Mixer

The air that is filled with dust enters the hopper where the heavy molecule falls out of the air stream. The heavier particles are caught in the air and rise into the filter bags as a result. As the cleaned air is drained through the collector, it passes through the filter bags, collecting dust particles on their exterior side surfaces. Through blowpipes and pulses, the pressured air jets moved through the venturies at precise intervals. This includes a secondary air flow that is strong and temporarily switches through the bags. As a result, an internal shock wave is created, which causes the bag to compress and expand outward as the shock propagates down its length. The procedure allows dust to be released from the inverted airflow on the bag's surface, which sinks into a collection known as a hopper. With this method, the airflow is temporarily switched across a row of bags. The dust collector will then have constant airflow as a result of this. A Solid State timer easily controls and adjusts the Cleaning Operation. The timer's faultless regulation is made possible and controlled by a differential pressure gauge. The pulse intervals and durations can be accurately and easily changed at the timer to reduce the process's use of compressed air.

Bag Filter For Boiler

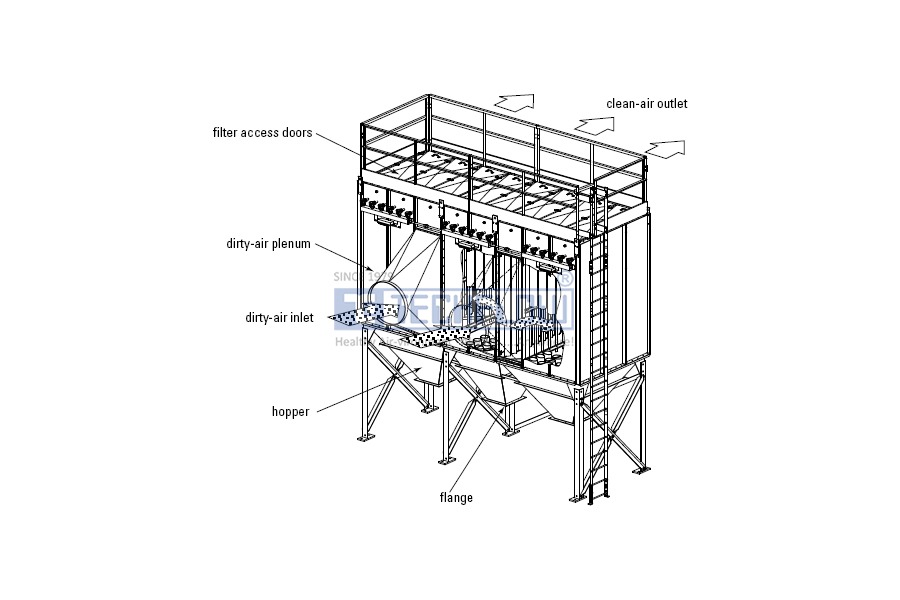

2. Off line Cleaned Pulse Jet Dust Collector for Mixer

It's also feasible to divide the Pulse-Jet baghouses. In this instance, the isolation/poppet valves located in the clean air plenum regulate the passage of the impure air into the compartments. One of two options is to install a single pulse valve in each compartment, which pressurises the group of bags, or to install individual pulsing valves, which direct the immediate pulsing air into the blowpipes outside the bag rows in the compartment. During the cleaning procedure, the isolation damper closest to the compartment blocks the airflow. Air is blasted into the bags for around two seconds through the pulse valve's entrance as part of the cleaning procedure. The compartment doesn't turn on or off while it pulses. Depending on the circumstance, that period may be lengthened or shortened. The compartment is returned to the stream upon the isolation/automatic poppet's closure. Up to and unless all of the bags in the baghouse are cleaned, the alternate compartments are cleaned one after the other using a method called "off-line cleaning." The baghouse frequently uses fabric filters that are mounted on lower bulk density products or dust, allowing thorough bag cleaning while continuously achieving significantly lower emission levels.

Bag Filter For Boiler

Features of Pulse Jet Dust Collector for Mixer :

  • Cartridge deduction & insertion from a low height and front-loading for the comfort of maintenance and function.
  • Smaller floor space is needed.
  • Modular Designs start from 1000 CuM/Hr to 1,00,000 CuM/Hr.
  • Delivered in Ready to Start state.Long-lasting parts assure constant duty operation.
  • Low-Pressure shrink, in comparison with Hose Bag Type Bag Filters.
  • Modular Designs start from 1000 CuM/Hr to 1,00,000 CuM/Hr.
  • Delivered in Ready to Start state.
  • Smaller floor space is needed.

Advantanges :

  • Pulse Jet Cartridge Filter

    Compact Design

  • Pulse Jet Cartridge Filter

    Lower Space Acquisition
